Waste to Wealth
AMS-India presents a line of semi-industrial machines to process plastic waste and convert “waste to wealth”.

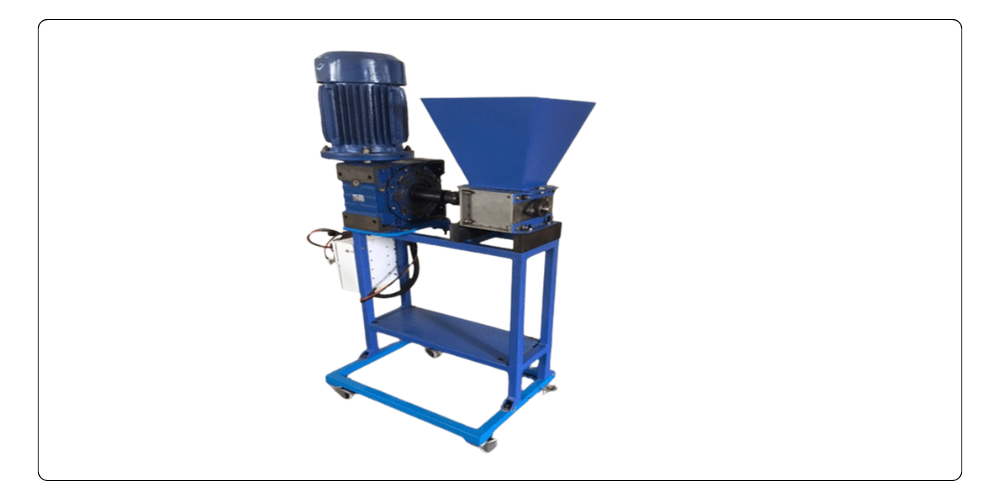

Plastic shredders are used to break down plastic objects into smaller fragments or granules. This process has several purposes, including recycling, reducing waste volume, and preparing plastics for other industrial processes like extrusion, injection molding, or pelletizing.
Specifications
|
Machine type : Automatic
|
Blade rotation speed : 35 RPM
|
|
Shredding material : Plastic
|
Fixed blades : 13
|
|
Body material : Stainless steel
|
Cutting blades : 14
|
|
Voltage-R25H single phase version : 230V 50-60Hz-R25H
|
Output : 0.5 kg/hr
|
|
Voltage-R25HH 3 phase version : 400V 3Ph-R25HH
|
Noise level : 85db
|
|
Power : 3 kW
|
Dimensions : 780x370x1400 mm
|
Filament extruder is a machine used to convert plastic pellets or granules into filament, which is a thin, continuous strand of plastic material. Filament is commonly used in 3D printing and other additive manufacturing processes.
Specifications
|
Machine type : Automatic
|
Power : 750 watt heater, 5 numbers
|
|
Working material : Plastic
|
Max current : 15 Amps
|
|
Body material : Stainless steel
|
Dimensions : 2745x520x1345 mm
|
|
Voltage-R25H single phase version : 230V 50-60Hz-R25H
|
Noise Level : 85db
|
|
Voltage-R25HH 3 phase version : 400V 3Ph-R25HH
|
Filament Diameter : 1.75mm
|
|
Weight : 105 Kgs
|

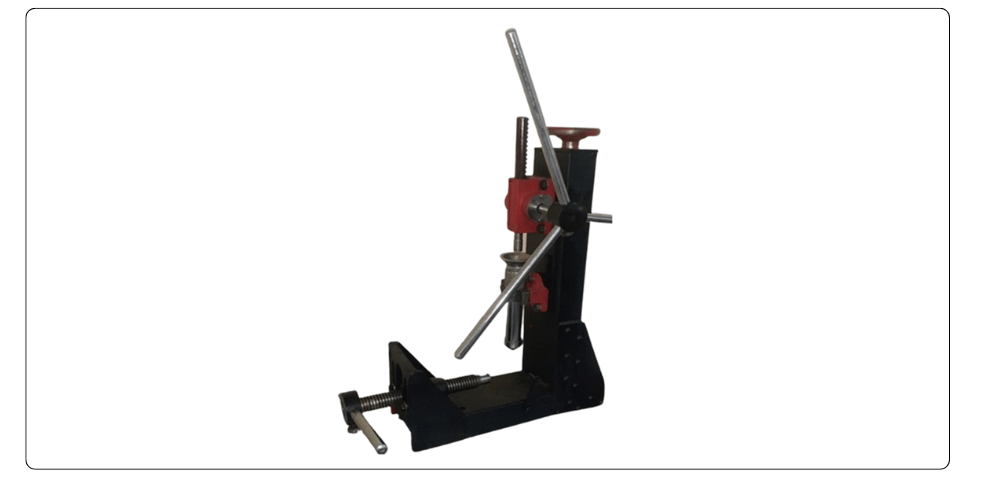

These Moulding Machines use the powders made in the Shredder and make small useful parts.
The different dies that are required can be manufactured for the parts that are required. We will give the technical information and training to make the dies that are required.
Specifications
|
Machine Type : Hand Operated
|
Heater : Band Heater Ceramic
|
|
Operation : Rack and Pinion Type
|
Temperature : Upto 250°C
|
|
Body Material : Alloy Steel
|
Build Volume : 20 cc
|
|
Phase : Single
|
Weight : 30 Kgs
|
|
Voltage : 220V/ 50 Hz
|
Machine Build Volume : 620x180x765 mm
|
|
Power : 2kW
|

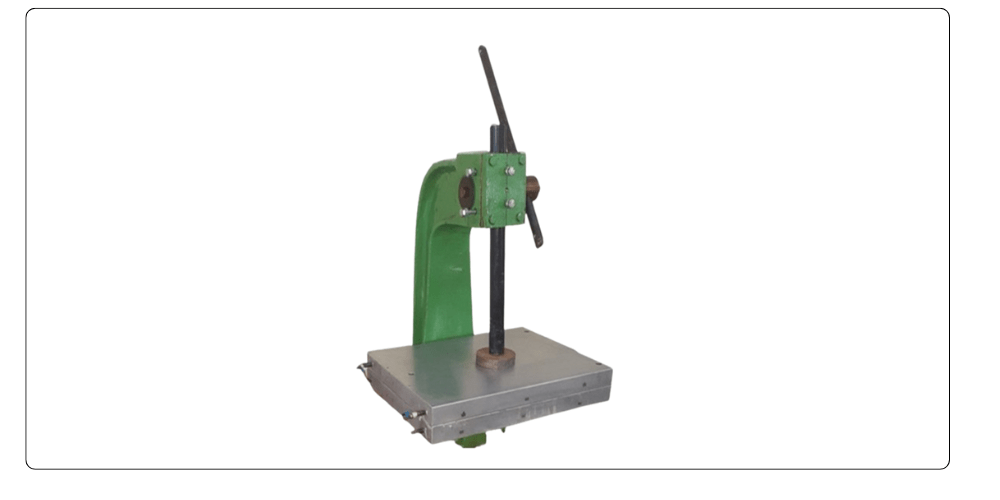

The machine uses the powders made in the shredder and make tiles.
The different sizes and shapes of Dies that are required can be manufactured for the tiles required. We will give the technical information and training to make the dies that are required.
Specifications
|
Machine Type : Hand Operated
|
Heater : Cartridge Heater
|
|
Operation : Rack And Pinion Type
|
Temperature Range : Upto 500°C
|
|
Body Material : Alloy Steel
|
Maximum Sheet Size : 9” x9” Thickness 8-10 Mm
|
|
Power Source : Electric
|
Weight : 40 Kgs
|
|
Voltage : 220V/ 50 Hz
|
Machine Build Volume : 445x405x500 Mm
|
|
Phase : Single
|

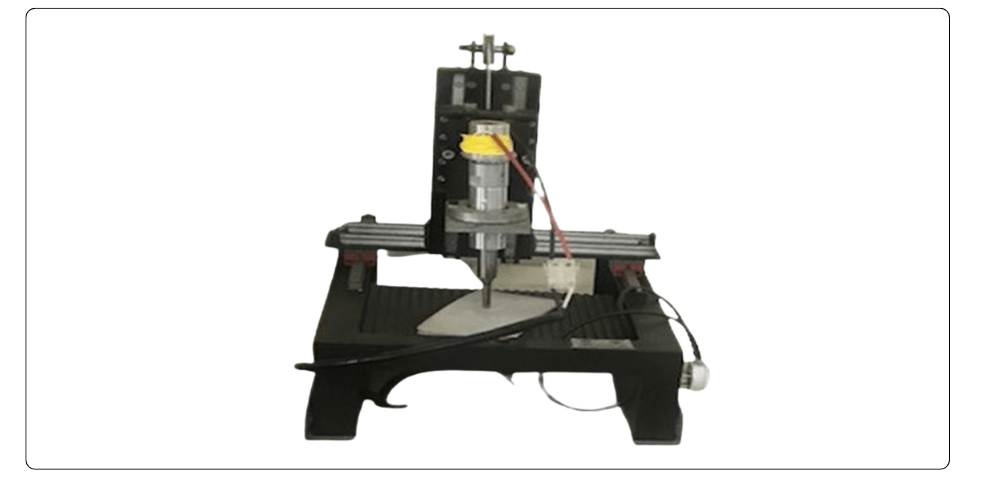

Plastic Welding machine can be a valuable tool for converting plastic waste into wealth by allowing you to repair, recycle, or repurpose plastic items.
Specifications
|
Model : UWHG 3005
|
Horn Material : Titanium
|
|
Capacity : 500W
|
No. of Horn : 1 No
|
|
Output Frequency : 30 Khz
|
Tuning : Manual
|
|
Input Power : 220V/ 50 Hz
|
Parameters to Vary : Time & Amplitude
|
|
Controller : Timer XT 546
|
Weight of The Hand Press Unit : 1.5 Kgs
|
|
Converter Type : PZT
|
Weight of The Generator : 13 Kgs
|
|
Operation Mode : Auto
|
Typical Dimensions : 400x290x110 mm
|

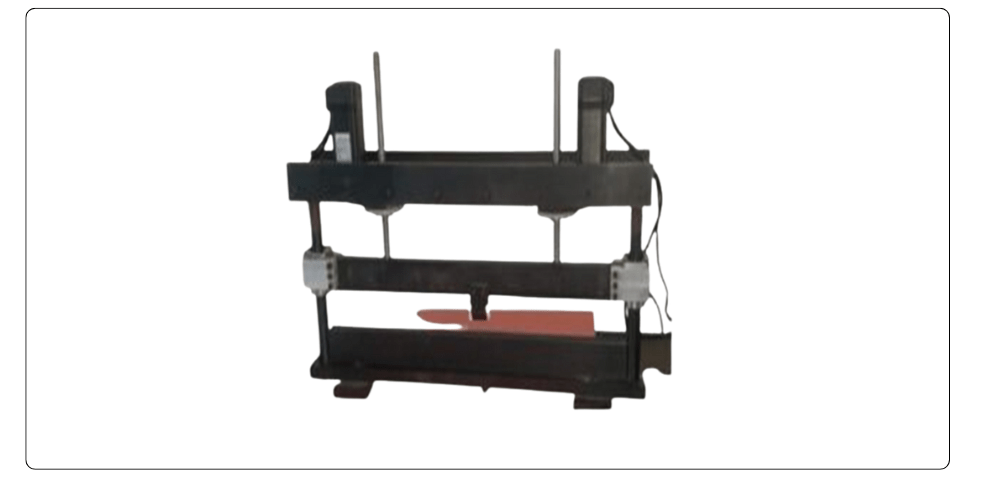

This machine uses the powders made in the Shredder and make Sheets on the sheet press. The Plastic sheet so made can be bent to any angle using the Hot bend press. It is controlled from the Repetrel control system.
Specifications
|
Machine Type : Automatic
|
Phase : Single
|
|
Bending Material : Plastic
|
Processing Thickness : Upto 3 Mm
|
|
Body Material :Alloy Steel
|
Processing Length : 450 Mm
|
|
Power Source : Electric
|
Weight : 25 Kgs
|
|
Voltage : 220V/ 50 Hz
|
Machine Build Volume : 700x115x425 Mm
|
|
Power : 2 Kw
|
Phase : Single
|
